HYDIS HV056WX2-100 5.6 inch lcd flat panel Hard coating for MID UMPC panel

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

HYDIS HV056WX2-100 5.6 inch lcd flat panel Hard coating for MID UMPC panel

  • 1
  • 2
  • 3

Brand Name : HYDIS

Model Number : HV056WX2-100

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Size : 5.6 inch

Resolution : 1280(RGB)×800 , WXGA

Active Area : 120.96×75.6 mm

Outline : 158×90.3 mm

Surface : Glare (Haze 0%), Hard coating (2H)

Brightness : 220 cd/m² (Typ.)

Contact Now

HYDIS HV056WX2-100 5.6 inch Hard coating for MID UMPC panel



Our Advantages

  • We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
  • 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
  • Welcome small, medium & big quantity orders.
  • 100% QC Inspection before Shipment.
  • After-sales-service With 12 Months Warranty for our LCD panels.

HV056WX2-100 Detailed Product Description

Panel Brand : HYDIS
Panel Model : HV056WX2-100
Panel Type : a-Si TFT-LCD , Assembly
Panel Size : 5.6 inch
Resolution : 1280(RGB)×800 , WXGA
Active Area : 120.96×75.6 mm
Outline : 158×90.3 mm
Surface : Glare (Haze 0%), Hard coating (2H)
Brightness : 220 cd/m2 (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 45%
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Signal Interface : LVDS (1 ch, 6-bit) , 25 pins



Packaging & Delivery

Packaging Details:

Safey package

Plastic trays inside

2 layes of cartons

Fragile sign on top

Can be customize 3.5 inch spare parts auo used lcd panel

Delivery Detail: 1-3 Working Days



HYDIS HV056WX2-100 Optical Features

Display Mode : HFFS, Normally Black, Transmissive
Brightness : 220 cd/m2 (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 45% NTSC (CIE1931)
Response Time : 30 (Typ.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.323; Wy:0.359
Sunlight Readable : N



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LM121VB1T02 SHARP 12.1" 640×480
LM121VB1T01 SHARP 12.1" 640×480
LM32015T SHARP 5.7" 320×240
LM8V302D SHARP 7.7" 640×480
LM104VC1T51 R SHARP 10.4" 640×480

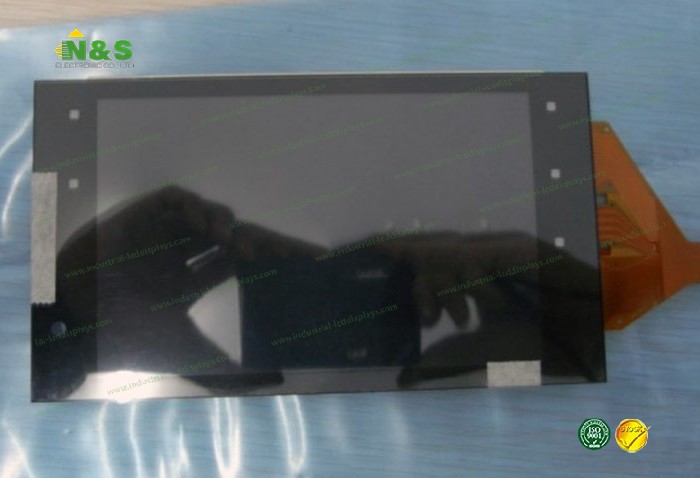

HV056WX2-100 Picture



HYDIS HV056WX2-100 5.6 inch lcd flat panel Hard coating for MID UMPC panel



HYDIS HV056WX2-100 5.6 inch lcd flat panel Hard coating for MID UMPC panel
