Normally White PD104VT1N1 TFT LCD Module with 211.2×158.4 mm Active Area

Brand Name : PVI

Model Number : PD104VT1N1

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Brand : PVI

Resolution : 640(RGB)×480 , VGA

Active Area : 211.2×158.4 mm

Outline : 243×185.1×13 mm

Contact Now

Normally White PD104VT1N1 TFT LCD Module 10.4 inch with 211.2×158.4 mm Active Area



Our Services

1. Quick and accurate reply with best service attidue to our business

2. Pofessional advise

3. Quick PI confirmation

4. Close production follow up and production process feedback

5. Safe package

6. Get feekback from your side when items arrived,

7. 24 months warranty for items



PD104VT1N1 Detail

Panel Size : 10.4 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 76 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.110×0.330 mm (H×V)
Pixel Pitch : 0.330×0.330 mm (H×V)
Weight : 516±20g
Surface : Antiglare
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 215.2×162.4 mm (H×V)
Outline Dimension : 243×185.1 mm (H×V)
Outline Depth : 12.5±0.5 mm
Holes & Brackets : Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
ED043WC1 E Ink 4.3" 480×800
ED043WC3 E Ink 4.3" 480×800
ED060XD6 E Ink 6.0" 758×1024
SMA058HRG1 E Ink 5.8" 600×448
SMA058H7G1 E Ink 5.8" 600×448
ED035OC1 E Ink 3.5" 360×600
ET014TT1 E Ink 1.43" 128×296
TD015OC1 E Ink 1.54" 200×200
ED060XC3 E Ink 6.0" 758×1024
ED060SCN E Ink 6.0" 600×800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk



Display Mode : TN, Normally White, Transmissive
Brightness : 330 cd/m² (Typ.)
Contrast Ratio : 400 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 15/25 (Typ.)(Tr/Td)
Viewing Angle : 45/45/15/40 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.309; Wy:0.337
White Variation : 1.25/1.43 (Typ./Max.)(9 points)
Sunlight Readable : N

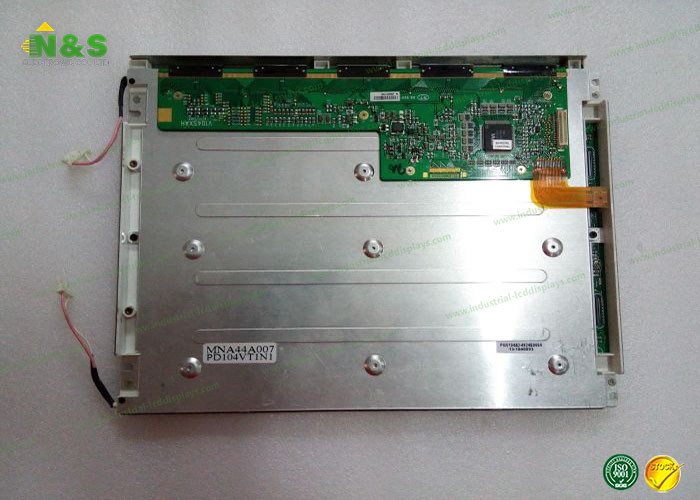

PD104VT1N1 Picture



Normally White PD104VT1N1 TFT LCD Module with 211.2×158.4 mm Active Area
