2.2 inch TD022SREC6 TFT LCD Module LCM 240×320 195 150:1 65K WLED CPU
TD022SREC6 Specification
| Panel Size : | 2.2 inch |
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 180 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.047×0.141 mm (H×V) |
| Pixel Pitch : | 0.141×0.141 mm (H×V) |
| Active Area : | 33.84×45.12 mm (H×V) |
| Outline Dimension : | 40.6×56.6 mm (H×V) |
| Outline Depth : | 2.91 (Typ.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
| Display Mode : | TN, Normally White, Transflective |
| Brightness : | 195 cd/m² (Typ.) |
| Contrast Ratio : | 150 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 8:1 (Typ.) (Reflective) |
| Display Color : | 65K () |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 14 (Typ.)(Tr+Td) |
| Viewing Angle : | 55/45/45/60 (Typ.)(CR≥10) (L/R/U/D) |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Reflectance Ratio : | 12/20% (Typ./Max.) |
| Sunlight Readable : | Y |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED097TC1 | E Ink | 9.7" | 1200×825 |
| ET047TC1 | E Ink | 4.7" | 540×960 |
| ET040TC1 | E Ink | 4.0" | 480×720 |
| ED043WH1 | E Ink | 4.3" | 480×800 |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |
| SMA058HRG1 | E Ink | 5.8" | 600×448 |
| SMA058H7G1 | E Ink | 5.8" | 600×448 |
| ED035OC1 | E Ink | 3.5" | 360×600 |
| ET014TT1 | E Ink | 1.43" | 128×296 |
| TD015OC1 | E Ink | 1.54" | 200×200 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

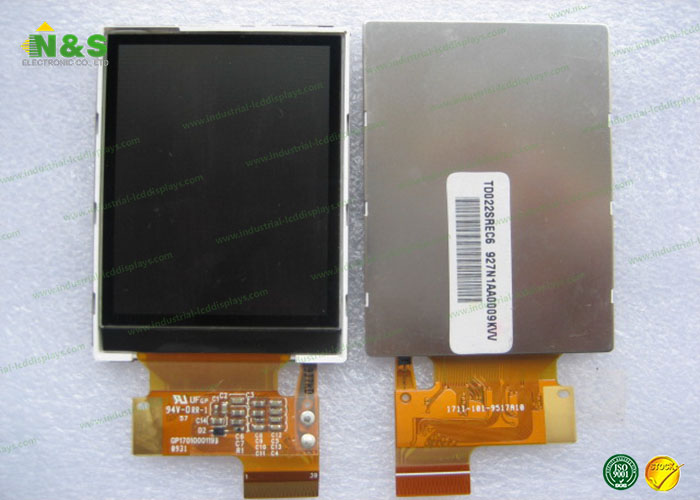

TD022SREC6 Picture
