Normally Black HannStar HSD070PWW1-B01 7.0 inch with 161.2×105.5×4.5 mm Outline
HSD070PWW1-B01 General Features
| Panel Brand : | HannStar |
| Panel Model : | HSD070PWW1-B01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Display Mode : | HS-IPS, Normally Black, Transmissive |
| Active Area : | 150.72×94.2 mm |
| Outline : | 161.2×105.5×4.5 mm |
| Surface : | Hard coating |
| Brightness : | 400 cd/m2 (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | LVDS (1 ch, 6-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
HannStar HSD070PWW1-B01 Mechanical Features
| Panel Size : | 7.0 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 215 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.03925×0.11775 mm (H×V) |
| Pixel Pitch : | 0.11775×0.11775 mm (H×V) |
| Weight : | 90.0/93.0g (Typ./Max.) |
| Surface : | Hard coating |
| Active Area : | 150.72×94.2 mm (H×V) |
| Outline Dimension : | 161.2×105.5 mm (H×V) |
| Outline Depth : | 2.35/4.5 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Our Company Strength in LCD Screen Sourcing:
- ISO9001 certificated, Factory Direct Supplied
- Competitive Price and Short Lead-time
- Professional Team with Rich Experiences in LCD screen international trade communication.
- Small MOQ Support & Fast Response to Customers
- Long Product Life Time
- 1 Year warranty for our LCD screen replacements.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD040B8W5-B00 | HannStar | 4.0" | 480×800 |
| HSD035B8W2-A00 | HannStar | 3.5" | 480×800 |
| HSD043B8W2-B01 | HannStar | 4.3" | 480×800 |
| HSD043B8W2-A01 | HannStar | 4.3" | 480×800 |
| HSD101PFW5-B11-0220 | HannStar | 10.1" | 1024×600 |
| HSD090IDW1-A01-0299 | HannStar | 9.0" | 800×480 |
| HSD035F8N1-B00 | HannStar | 3.5" | 320×240 |
| HSD032F3N2-A00 | HannStar | 3.2" | 240×320 |
| HSD030F3W1-B00 | HannStar | 3.0" | 240×400 |
| HSD026F3W1-A | HannStar | 2.6" | 240×400 |
| HSD022F3N4-A | HannStar | 2.2" | 240×320 |
| HSD020F2N7-A | HannStar | 2.0" | 176×220 |
| HSD019F2N1-A | HannStar | 1.9" | 220×176 |
| HSD018F2N4-A | HannStar | 1.8" | 220×176 |
| HSD070BDW3-A00 | HannStar | 7.0" | 800×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

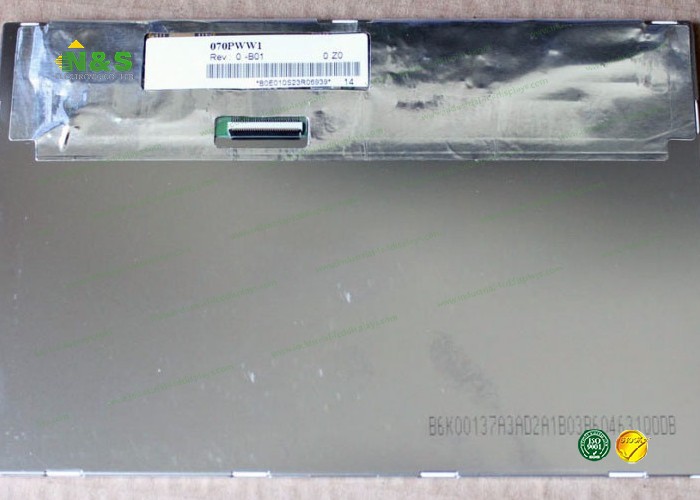

HSD070PWW1-B01 Picture
Product Tags:
|
|
HannStar HSD070PWW1-B01 Industrial LCD Displays 7.0 inch 161.2×105.5×4.5 mm Images
|
