TM035KDH01 Tianma LCD Displays 3.5 inch Normally White for Digtal Still Camera panel

Name: TM035KDH01 Tianma LCD Displays 35 inch Normally White for Digtal Still Camera panel
Brand: Tianma
Price: 1 USD

Brand Name : Tianma

Model Number : TM035KDH01

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1 Piece

Payment Terms : T/T, Paypal, Western Union, MoneyGram

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Size : 3.5 inch

Resolution : 320(RGB)×240 , QVGA

Display Mode : TN, Normally White, Transmissive

Signal Interface : Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins

Contact Now

TM035KDH01 Tianma LCD Displays 3.5 inch Normally White for Digtal Still Camera panel

Products Information:

Panel Size :

3.5 inch

Dot Resolution :

320(RGB)×240 (QVGA)

Pixel Configuration :

RGB Vertical Stripe

Pixel Density :

115 PPI

Aspect Ratio :

4:3 (H:V)

Form Factor :

Flat Rectangle Display

Dot Pitch :

0.073×0.219 mm (H×V)

Pixel Pitch :

0.219×0.219 mm (H×V)

Weight :

29g (Typ.)

Surface :

Clear, Hard coating (3H)

Active Area :

70.08×52.56 mm (H×V)

Bezel Area :

72.88×55.36 mm (H×V)

Outline Dimension :

76.9×63.9 mm (H×V)

Outline Depth :

2.8±0.2 mm

Landscape or Portrait :

Landscape type

Touch Panel :

Without

Display Mode :

TN, Normally White, Transmissive

Brightness :

420 cd/m² (Typ.)

Contrast Ratio :

350 : 1 (Typ.) (Transmissive)

Display Color :

16.7M (8-bit)

Color Gamut :

50% NTSC (CIE1931)

Response Time :

25 (Typ.)(Tr+Td)

Viewing Angle :

60/60/40/60 (Typ.)(CR≥10) (L/R/U/D)

Viewing Direction :

6 o'clock

White color Chromaticity :

Wx:0.310; Wy:0.330

White Variation :

1.25/1.33 (Typ./Max.)(9 points)

Sunlight Readable :

Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day

Below are our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
TM055JYHP01	Tianma	5.5"	720×1280
TM046XYHP01	Tianma	4.7"	540×960
TL050VGXP01	Tianma	5.0"	1080×1920
TM060JYSP02	Tianma	6.0"	720×1280
TM045YYSP04	Tianma	4.5"	480×854
TM045YYSP02	Tianma	4.5"	480×854
TM016XYHP01	Tianma	1.6"	256×320

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Our Service

1. Small quantity also can be provided.

2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise

5. Sourcing line for different hard disks for different brands.

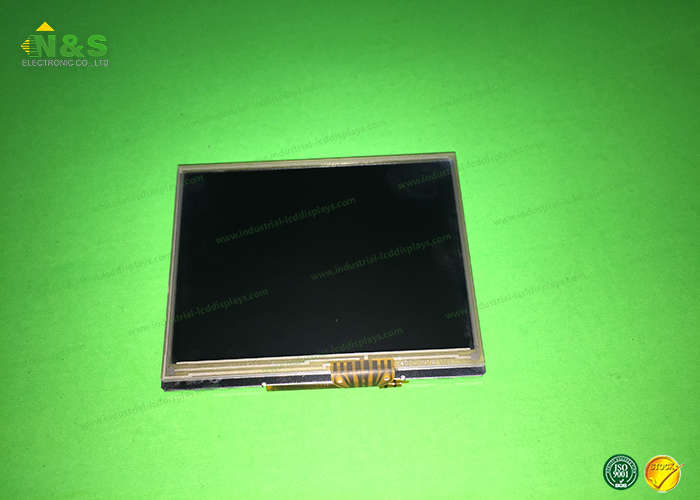

TM035KDH01 Picture

TM035KDH01 Tianma LCD Displays 3.5 inch Normally White for Digtal Still Camera panel
