6.1 Inch 800×480 tablet lcd screen / CLAA061LA0BCW CPT color tft lcd display

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

6.1 Inch 800×480 tablet lcd screen / CLAA061LA0BCW CPT color tft lcd display

Brand Name : CPT

Model Number : CLAA061LA0BCW

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1 Piece

Payment Terms : T/T, Paypal, Western Union, MoneyGram

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Surfaces : Antiglare, Hard coating (3H)

Panel Size : 6.1 inch

Resolution : 800(RGB)×480 , WVGA

Display Mode : TN, Normally White, Transmissive

Frequency : 60Hz

Signal Interface : 3.3/9.2/18/-6V (Typ.)(VCC/AVDD/VGH/VGL)

Contact Now

CLAA061LA0BCW CPT 6.1 inch 800×480, 6-bit, TTL, 2D, WLED, Flat, LCM Hot Model

Products Information:

Panel Size :6.1 inch
Dot Resolution :800(RGB)×480 (WVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :153 PPI
Aspect Ratio :17:9 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.05675×0.15 mm (H×V)
Pixel Pitch :0.17025×0.15 mm (H×V)
Weight :110g (Typ.)
Surface :Antiglare, Hard coating (3H)
Active Area :136.2×72 mm (H×V)
Bezel Area :138.3×74.0 mm (H×V)
Outline Dimension :149×82.9 mm (H×V)
Outline Depth :5.0/5.2 (Typ./Max.) mm
Holes & Brackets :Without
Landscape or Portrait :Landscape type
Touch Panel :Without



Display Mode :TN, Normally White, Transmissive
Brightness :500 cd/m² (Typ.)
Contrast Ratio :400 : 1 (Typ.) (Transmissive)
Display Color :262K (6-bit)
Color Gamut :70% NTSC (CIE1931)
Response Time :20 (Typ.)(Tr+Td)
Viewing Angle :70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :6 o'clock
White color Chromaticity :Wx:0.313; Wy:0.329
White Variation :1.25 (Typ.)(9 points)
Sunlight Readable :N


Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
CLAN080WQ65 XGCPT8.0"800×1280
CLAN070NQ06CPT7.0"1024×600
CLAG050LD01CPT5.0"480×854
CLAN060LB41 2XCCPT6.0"540×960
CLAD015GA01 CXACPT1.5"480×240
CLAN101FP05 XGCPT10.1"1920×1200
CLAG101WH11 LXACPT10.1"1280×800


What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.

FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.

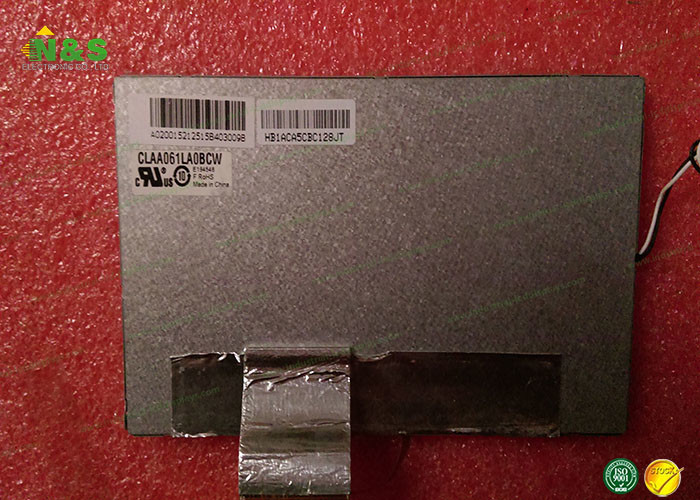

CLAA061LA0BCW Picture
