HannStar LCD Screen HSD070PWW1-C00 7.0 inch 150.72×94.2 mm Active Area 161.6×105.8×4.85 mm Outline
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 13 years experience in intelligent controller R&D and manufacturing.
6. Strong R&D term supports perfect customized projects.
7. Supplier of famous brands: Sun Rain, Phnix, Chigo, Rechi, Microwell SRO etc.
8. Fabulous after-sale service.
Quick Details
| Panel Brand : | HannStar |
| Panel Model : | HSD070PWW1-C00 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Display Mode : | HS-IPS, Normally Black, Transmissive |
| Active Area : | 150.72×94.2 mm |
| Outline : | 161.6×105.8×4.85 mm |
| Surface : | Hard coating |
| Brightness : | 690 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | LVDS (1 ch, 6-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
HannStar HSD070PWW1-C00 Optical Features
| Display Mode : | HS-IPS, Normally Black, Transmissive |
| Brightness : | 690 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25 (Max.)(9 points) |
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| HSD116BHW1-A00 | HannStar | 11.6" | 1366×768 |
| HSD122BUW1-A00 | HannStar | 12.2" | 1920×1200 |
| HSD050B8W8-C00 | HannStar | 5.0" | 480×854 |
| HSD101BWW4-A00 | HannStar | 11.0" | 800×1280 |
| HSD101PFW5-C00-0299 | HannStar | 10.1" | 1024×600 |
| HSD101PFW7-A00-0299 | HannStar | 10.1" | 1024×600 |

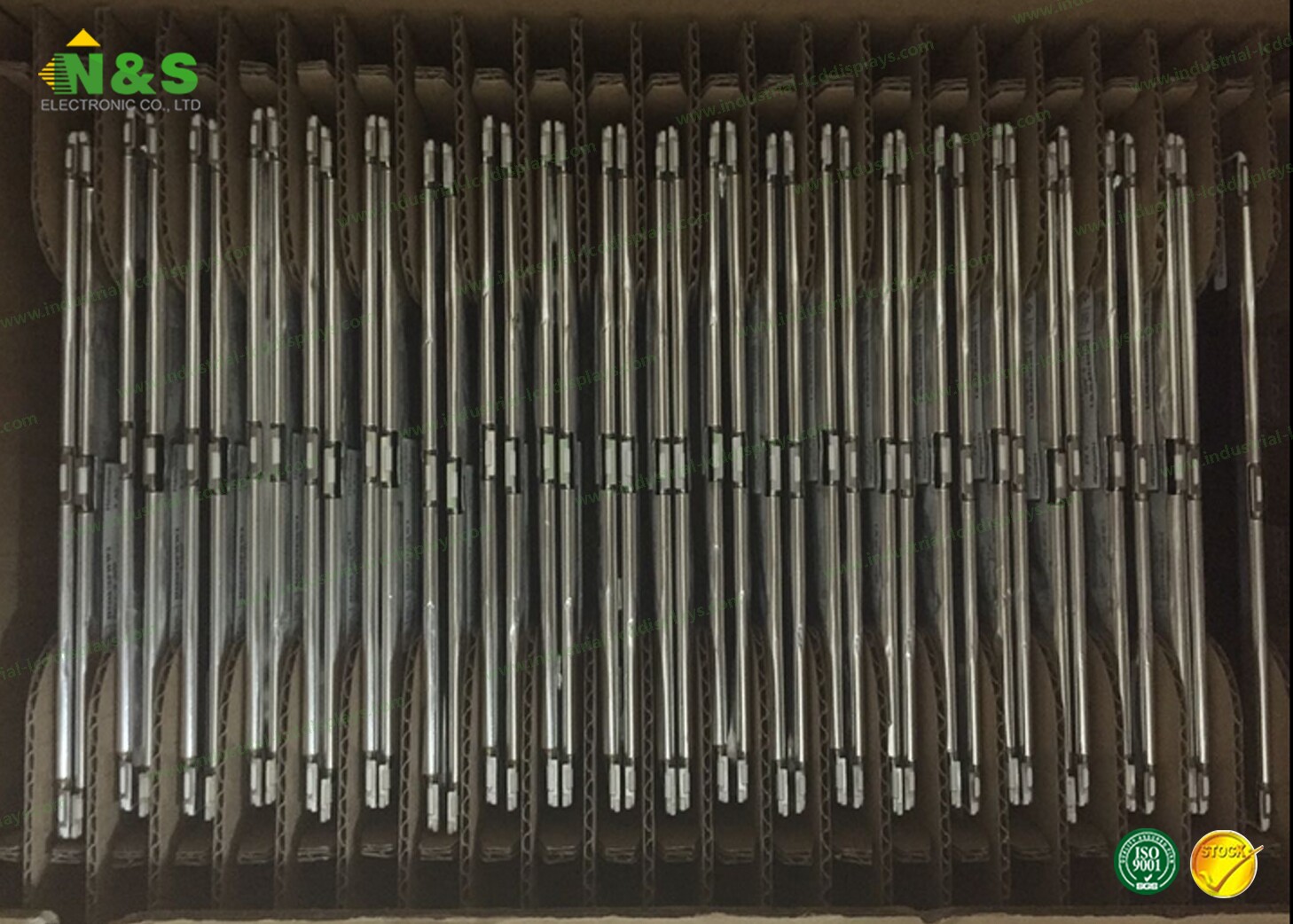

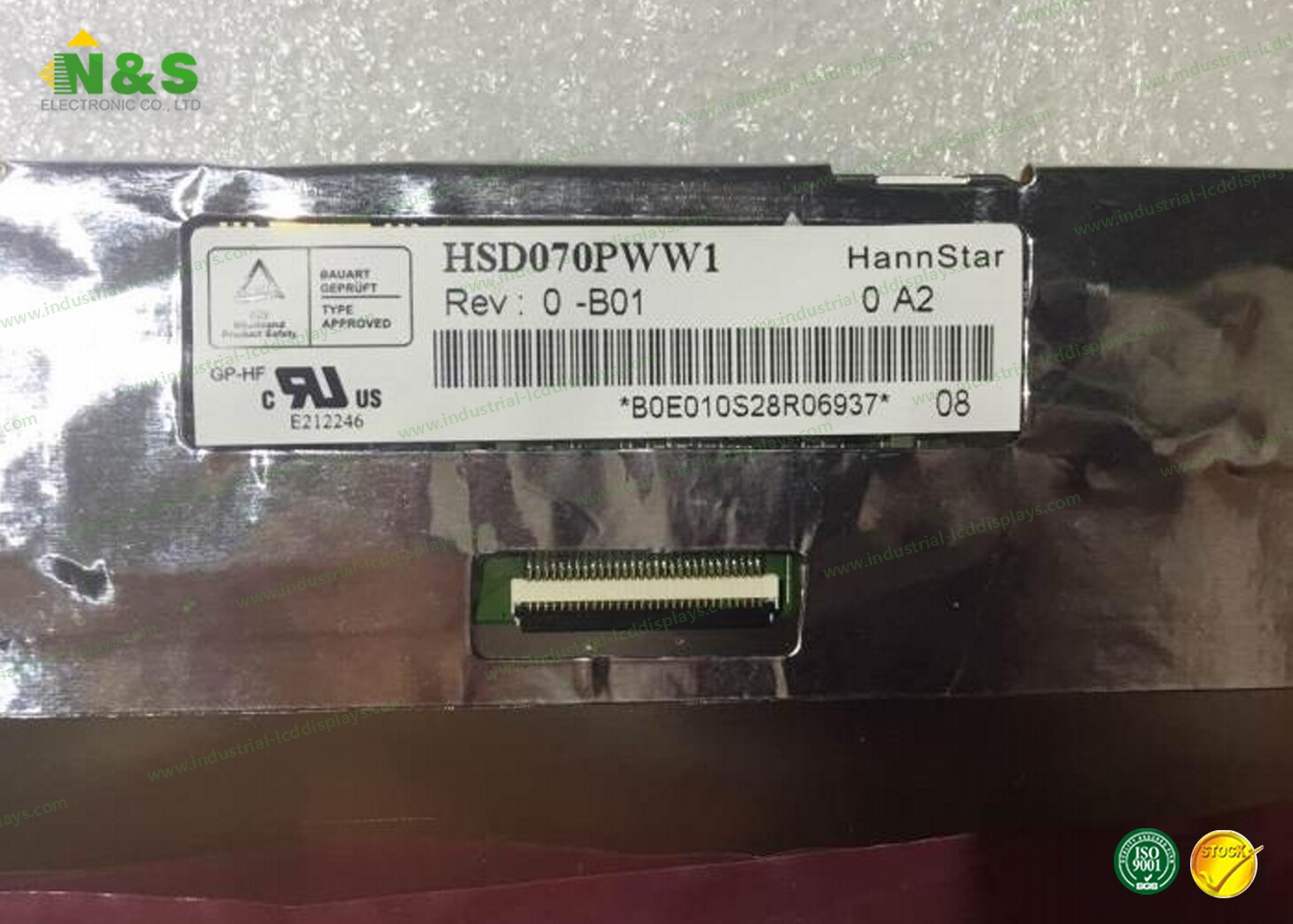

Details Pictures for HannStar LCD Screen HSD070PWW1-C00
