1024*768 15'' G150XGE-L06 TFT Innolux LCD Panel Display for Industrial Application

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

1024*768 15'' G150XGE-L06 TFT Innolux LCD Panel Display for Industrial Application

Brand Name : Innolux LCD Panel

Model Number : G150XGE-L06

Certification : ISO9001

Place of Origin : Japan,Korea

MOQ : 1 Piece

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 100 PCS PER DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box

Storage Temperature : -30 ~ 70 °C

Outline Dimension : 326.5×253.5 mm (H×V)

Viewing Angle : 45/45/25/45 (Typ.)(CR≥10) (L/R/U/D)

Display Color : 262K/16.2M (6-bit / 6-bit + FRC)

Viewing Direction : 6 o'clock

White color Chromaticity : Wx:0.313; Wy:0.329

Lamp Position : Edge light type

Interface Type : Connector

Contact Now

1024*768 15'' Innolux G150XGE-L06 TFT LCD Display for Industrial Application



Primary Competitive Advantages:



  1. Price
  2. Product Features
  3. Product Performance
  4. Prompt Delivery
  5. Quality Approvals
  6. Reputation
  7. Service
  8. Small Orders Accepted
  9. Brand-name Parts
  10. Country of Origin
  11. Distributorships Offered
  12. Electronic Link
  13. Experienced Staff
  14. Form A
  15. Green Product
  16. Guarantee/Warranty
  17. International Approvals
  18. Military Specifications
  19. Packaging

What is our advantage?



1. Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.

2. Delivery Quantity: 50-100 cartons shipped by DHL every week

3. Supply Ability: 100 pcs Panels per day.

4. Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)

5. Warranty: 12 months.



INNOLUX G150XGE-L06 General Features



Active Area : 304.1×228.1 mm
Outline : 326.5×253.5×12.06 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 60%
Response Time : 5/11 (Typ.)(Tr/Td)
Viewing Angle : 45/45/25/45 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : LVDS (1 ch, 6/8-bit) , 20 pins
Input Voltage : 3.3V (Typ.)



INNOLUX G150XGE-L06 Mechanical Features



Panel Size : 15.0 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 85 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.099×0.297 mm (H×V)
Pixel Pitch : 0.297×0.297 mm (H×V)
Weight : 1.04/1.09Kgs (Typ./Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 304.1×228.1 mm (H×V)
Bezel Area : 307.4×231.3 mm (H×V)
Outline Dimension : 326.5×253.5 mm (H×V)
Outline Depth : 11.56±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

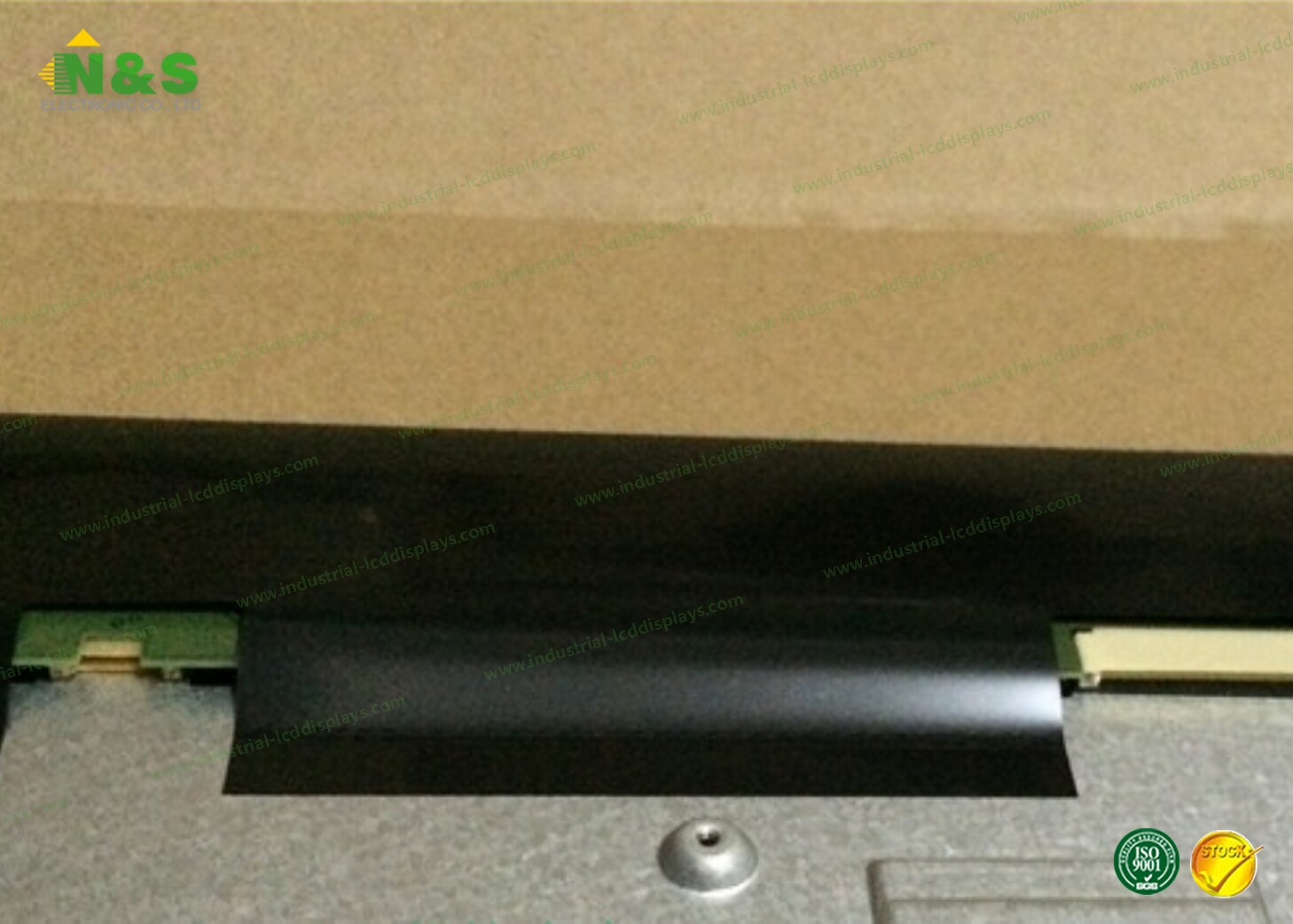

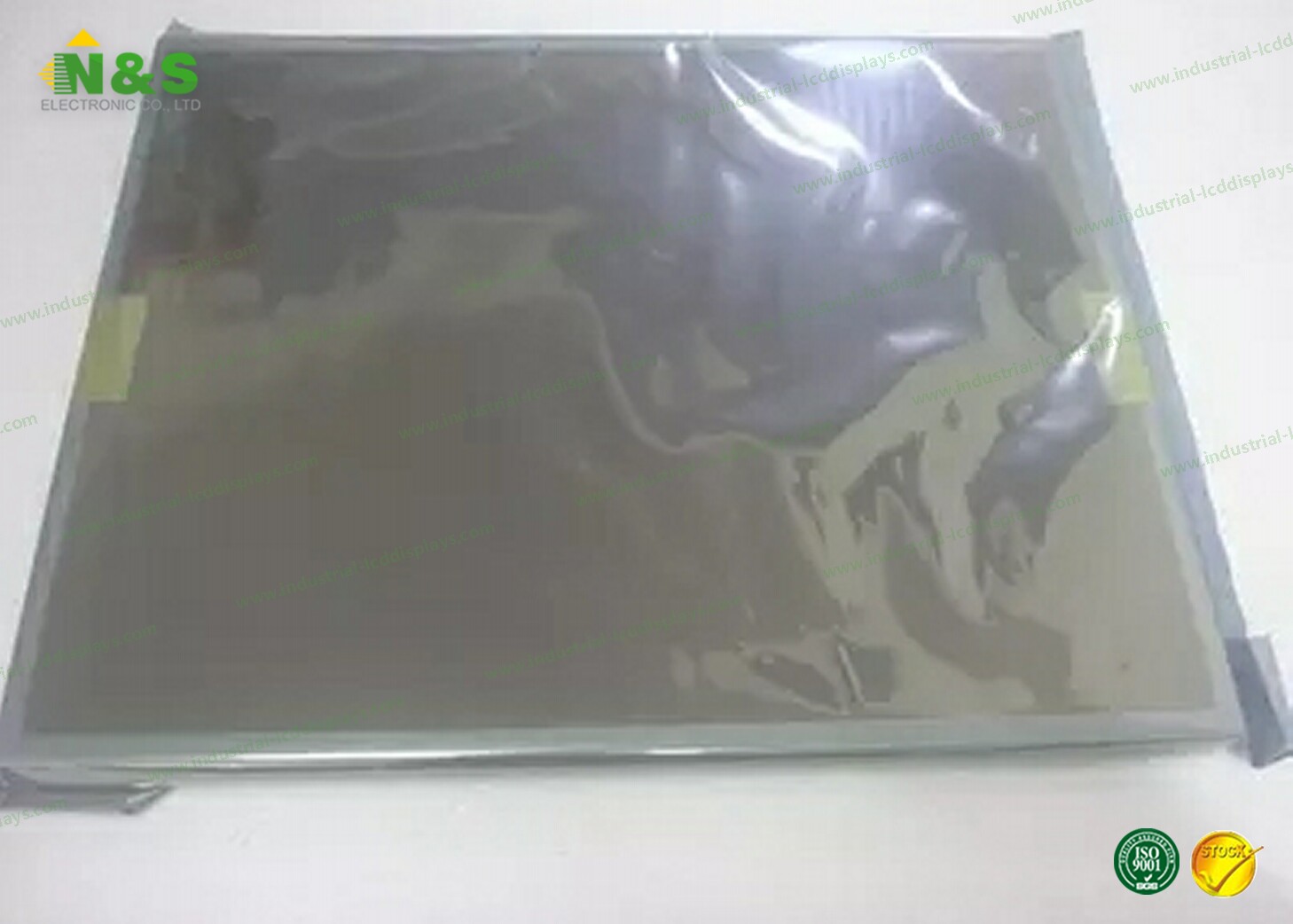

Products Photograph for INNOLUX G150XGE-L06



1024*768 15'' G150XGE-L06 TFT Innolux LCD Panel Display for Industrial Application



1024*768 15'' G150XGE-L06 TFT Innolux LCD Panel Display for Industrial Application



1024*768 15'' G150XGE-L06 TFT Innolux LCD Panel Display for Industrial Application
