9.4 inch LM-CA53-22NSZ TORISAN for 640*480, STN Normally Black, Transmissive
Quick Details for LM-CA53-22NSZ LCD Panel:
| Panel Size : | 9.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 84 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.10×0.30 mm (H×V) |
| Pixel Pitch : | 0.30×0.30 mm (H×V) |
| Active Area : | 191.975×143.975 mm (H×V) |
| Landscape or Portrait : | Landscape type |
Industrial LCD Displays General Features:
Landscape type
Panel Brand : TORISAN
Panel Model : LM-CA53-22NSZ
Panel Type : CSTN-LCD , Panel
Panel Size : 9.4 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : STN, Normally Black, Transmissive [[Panelook copyright, copy is strictly prohibited] IPS Family: AAS, ADS, AHVA, FFS, IPS, New Mode2, PLS, SFT, Vistarich VA Family: ASV, HVA, MVA, PVA, SVA, UV²A, VA]
Active Area : 191.975×143.975 mm
TORISAN LM-CA53-22 Series Model
| Panel Model | Size | Type | Resolution |
| LM-CA53-22NTK | 9.4" | Panel | 640×480 |
| LM-CA53-22NSZ | 9.4" | Panel | 640×480 |
| LM-CA53-22NSX | 9.4" | Panel | 640×480 |
| LM-CA53-22NSK | 9.4" | Panel | 640×480 |
| LM-CA53-22NDK | 9.4" | Panel | 640×480 |
| LM-CA53-22NAZ | 9.4" | Panel | 640×480 |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTD121LA7SG (Z) | TOSHIBA | 12.1" | 1024×768 |
| LTD154LZ1SG | TOSHIBA | 15.4" | 1920×1200 |
| LTD141LA1SG | TOSHIBA | 14.1" | 1024×768 |
| LTD121EA43G | TOSHIBA | 12.1" | 1024×768 |
| LTH15C503-A | TOSHIBA | 15.0" | 1024×768 |
| LTM024D161 | TOSHIBA | 2.4" | 240×320 |
| LTM030DH60 | TOSHIBA | 3.0" | 240×427 |
| LTD154LZ1SG (Z) | TOSHIBA | 15.4" | 1920×1200 |
| LTD154EZ0HG | TOSHIBA | 15.4" | 1920×1200 |
| LTA140C06HF | TOSHIBA | 14.0" | 640×480 |
| LTM06C381 | TOSHIBA | 5.8" | 800×480 |
| LTM04C387S | TOSHIBA | 4.0" | 640×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
9.4", 640×480, Parallel Data, 2D, CCFL, Flat, Panel Hot Model
| Panel Model | Size | Type | Resolution | cd/m2 |
| LM64P83L | 9.4" | Panel | 640×480 | 65 |
| LM64P839 | 9.4" | Panel | 640×480 | 65 |
| LM64183P | 9.4" | Panel | 640×480 | 70 |
| LM64P83 | 9.4" | Panel | 640×480 | |
| DMF50260NF-FW-18 | 9.4" | Panel | 640×480 | |
| LM-CD53-22NTK | 9.4" | Panel | 640×480 | |
| DMF50260NF-FW-15 | 9.4" | Panel | 640×480 | 110 |
| LMG5278XUFC-00T | 9.4" | Panel | 640×480 | 60 |
| F-51430NFU-FW-AA | 9.4" | Panel | 640×480 | 110 |
| LM64P722 | 9.4" | Panel | 640×480 | |
We Can Do for You:
1. Quality ensurance
100% original new and A grade,
You can enjoy the real panels directly from original factory;
2. Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3. Delivery ensurance:
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4. After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.
We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation:
We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

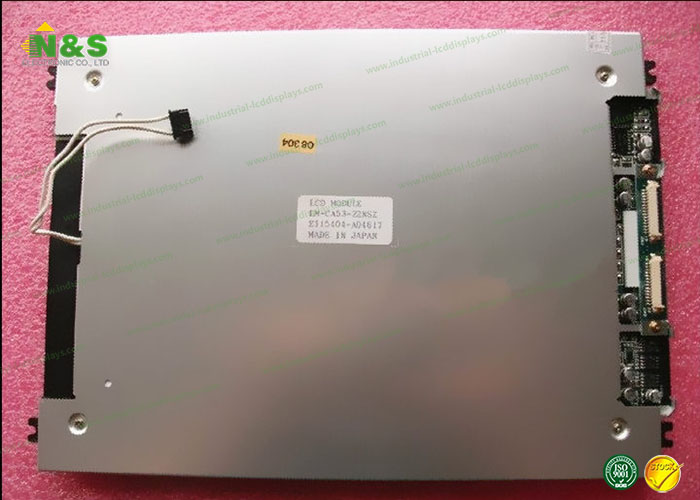

Details Pictures for Industrial LCD Displays:
Product Tags:
|
|
9.4 inch LM-CA53-22NSZ TORISAN for 640*480, STN Normally Black, Transmissive Images
|
