Antiglare Surface Digital LCD Display TM035WBHG01 TIANMA A-Si TFT-LCD3.5 Inch 480×640

N&S ELECTRONIC CO., LIMITED
Contact Now

Antiglare Surface Digital LCD Display TM035WBHG01 TIANMA A-Si TFT-LCD3.5 Inch 480×640

  • 1
  • 2

Brand Name : TIANMA

Model Number : TM035WBHG01

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box

Panel Model : TM035WBHG01

Panel Brand : TIANMA

Descrition : 480×640

Panel Type : a-Si TFT-LCD

Active Area : 53.28×71.04 mm

Outline : 64×85×4.63 mm

Contact Now

New and original TM035WBHG01 TIANMA a-Si TFT-LCD ,3.5 inch, 480×640 for Medical Imaging



TM035WBHG01 Basic Information

Panel Model TM035WBHG01
Panel Brand TIANMA
Descrition a-Si TFT-LCD ,3.5 inch, 480×640
Panel Type a-Si TFT-LCD
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C





Packaging & Delivery

Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

Delivery Detail: 2-3 days after receipt of payment

Payment terms: We accept T/T, PayPal, Western Union and others.

TM035WBHG01 Mechanical Features

Dot Resolution 480(RGB)×640 (VGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 228 PPI
Aspect Ratio 3:4 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.037×0.111 mm (H×V)
Pixel Pitch 0.111×0.111 mm (H×V)
Surface Antiglare
Active Area 53.28×71.04 mm (H×V)
Outline Dimension 64×85 mm (H×V)
Outline Depth 4.33±0.3 mm
Landscape or Portrait Portrait type
Touch Panel Embeded (4-wire Resistive)



After-sale Services:

1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).

2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.

3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.

TM035WBHG01 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 250 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 50% NTSC (CIE1931)
Response Time 25 (Typ.)(Tr+Td)
Viewing Angle 60/70/70/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 9 o'clock
White color Chromaticity Wx:0.301; Wy:0.321
White Variation 1.33/1.43 (Typ./Max.)(9 points)
Sunlight Readable N



Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in industrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.

TM035WBHG01 Electronics Feature

Driver IC Built-in HX8363-A







Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
TS022GAADY02 Tianma 2.2" 176×220
TM057JYHP03 Tianma 5.7" 720×1280
TM053JYHP01 Tianma 5.3" 720×1280
TM050JYHP01 Tianma 5.0" 720×1280
TM080TYH01 Tianma 8.0" 1024×768
TM020GYH34 Tianma 2.0" 176×220
TM020GYH33 Tianma 2.0" 176×220
TM020GYH32 Tianma 2.0" 176×220

We also have other industrial LCD panels, pls contact to us for the further information

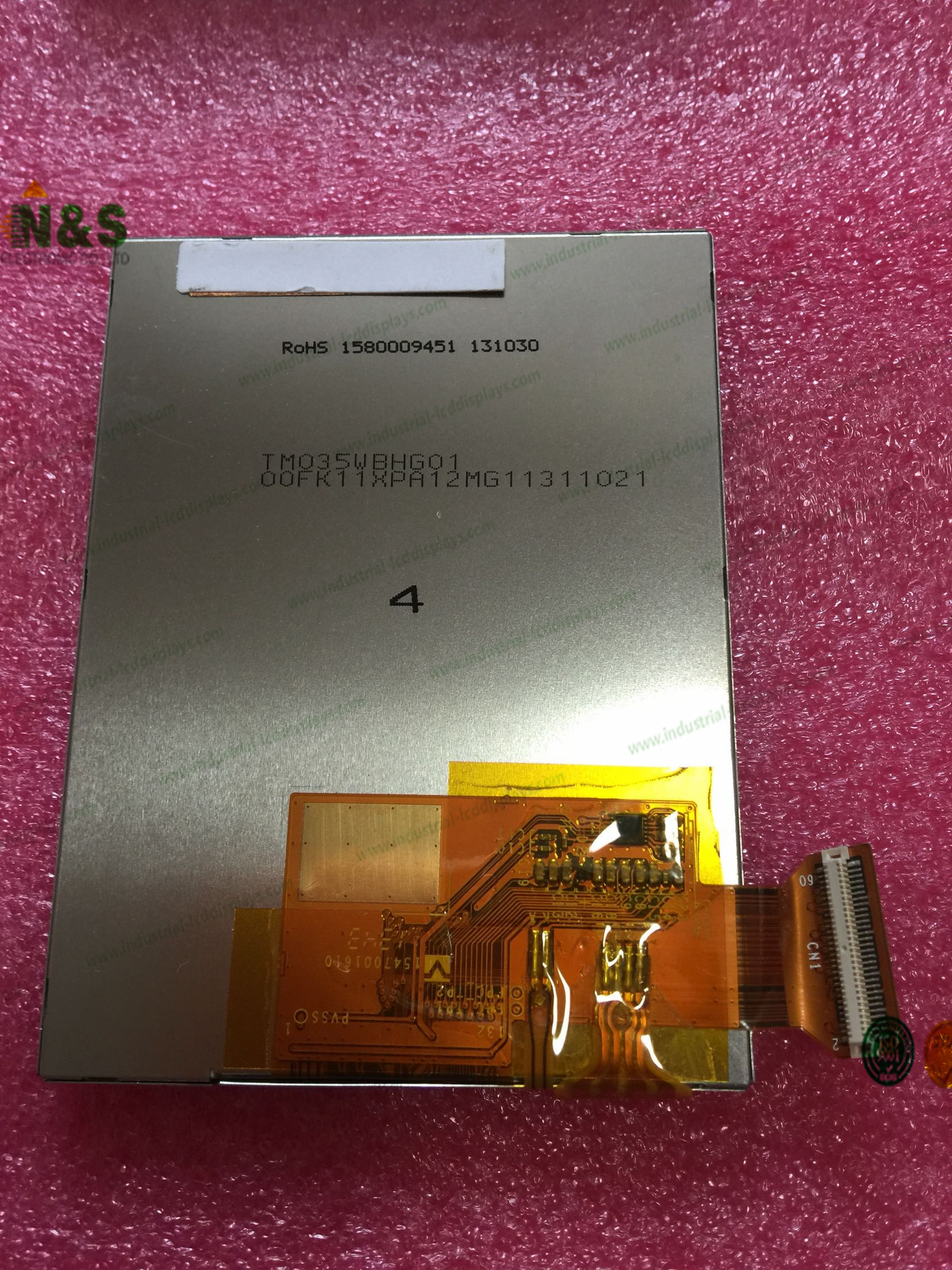

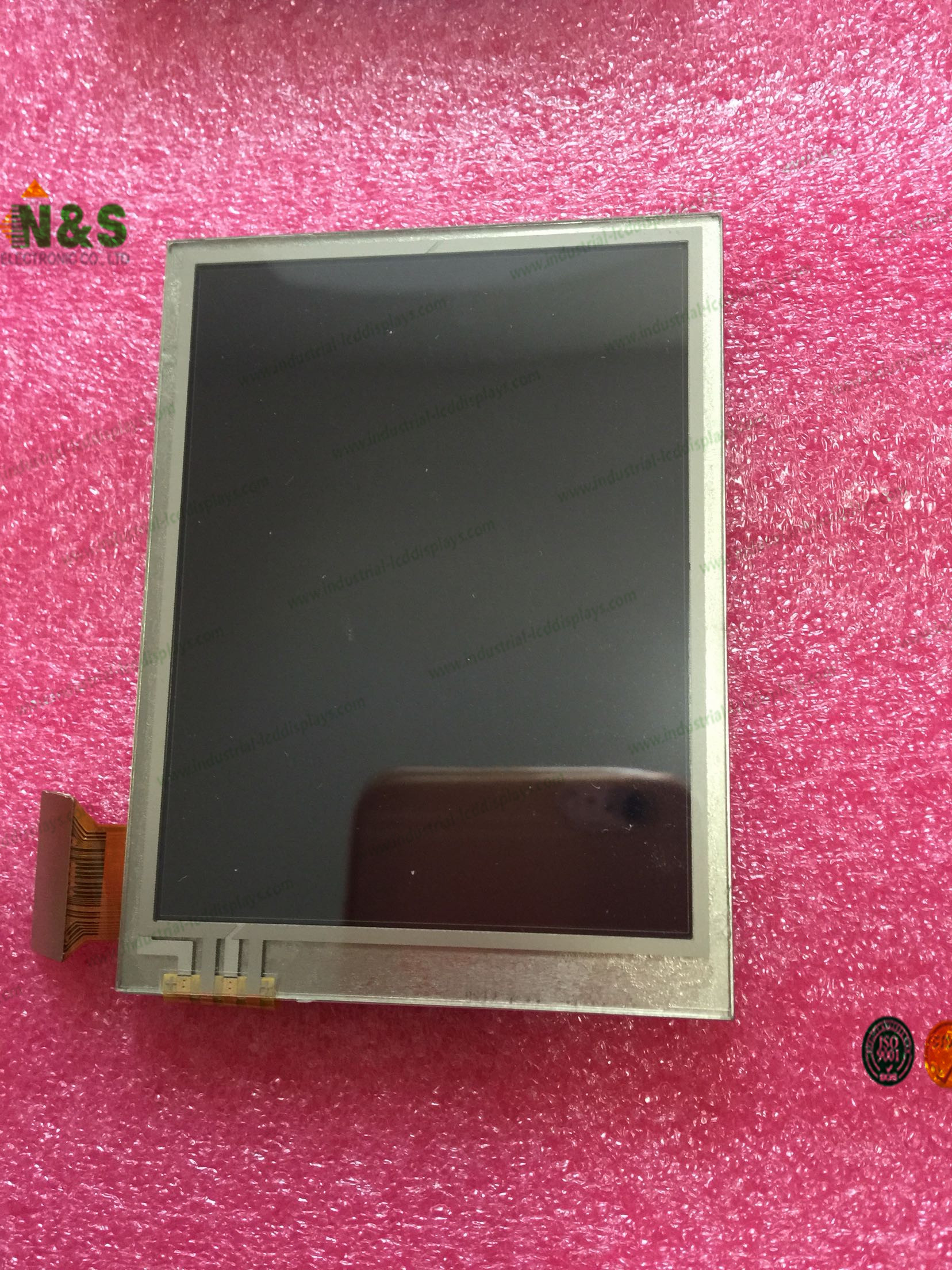

TM035WBHG01   pictures



Antiglare Surface Digital LCD Display TM035WBHG01 TIANMA A-Si TFT-LCD3.5 Inch 480×640Antiglare Surface Digital LCD Display TM035WBHG01 TIANMA A-Si TFT-LCD3.5 Inch 480×640
