Data Image FG080000DNCWAGT1 Industrial LCD Displays 8.0 inch 162.24×121.68 mm

Name: Data Image FG080000DNCWAGT1 Industrial LCD Displays 80 inch 1622412168 mm
Brand: Data Image
Price: 1 USD

Buy cheap Data Image FG080000DNCWAGT1 Industrial LCD Displays 8.0 inch 162.24×121.68 mm product

Brand Name : Data Image

Model Number : FG080000DNCWAGTI

Certification : ISO9001

Place of Origin : Taiwan

MOQ : 1 piece

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 100 PCS PER DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Brand : Data Image

Panel Model : FG080000DNCWAGTI

Panel Type : a-Si TFT-LCD , Panel

Panel Size : 8.0 inch

Surface : Antiglar

Brightness : 320 cd/m² (Typ.)

Contrast Ratio : 250:1 (Typ.)

Display Colors : 262K (6-bit)

Contact Now

Data Image FG080000DNCWAGT1 Industrial LCD Displays 8.0 inch 162.24×121.68 mm

Data Image FG080000DNCWAGT1 General Features

Panel Brand :	Data Image
Panel Model :	FG080000DNCWAGT1
Panel Type :	a-Si TFT-LCD , Panel
Panel Size :	8.0 inch
Resolution :	640(RGB)×480 , VGA
Display Mode :	TN, Normally White, Transmissive
Active Area :	162.24×121.68 mm
Outline :	183×141×16.7 mm
Surface :	Antiglare
Brightness :	320 cd/m² (Typ.)
Contrast Ratio :	250:1 (Typ.)
Display Colors :	262K (6-bit)
Response Time :	15/35 (Typ.)(Tr/Td)
Viewing Angle :	65/65/55/65 (Typ.)(CR≥10) (L/R/U/D)
Frequency :	60Hz

Company Strength

1. ISO9001 certificated, Factory Direct Supplied

2. RoHS Compliant, Lead Free, Reach Compliant

3. Competitive Price and Short Lead-time

4. Professional Team with Rich Experiences in Design/Mfg/Quality Control

5. Small MOQ Support & Fast Response to Customers

6. Long Product Life Time

Data Image FG080000DNCWAGT1 Backlight System

Display Mode :	TN, Normally White, Transmissive
Brightness :	320 cd/m² (Typ.)
Contrast Ratio :	250 : 1 (Typ.) (Transmissive)
Display Color :	262K (6-bit)
Response Time :	15/35 (Typ.)(Tr/Td)
Viewing Angle :	65/65/55/65 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
White color Chromaticity :	Wx:0.293; Wy:0.345
White Variation :	1.25/1.43 (Typ./Max.)(5 points)

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Plastic Trays Inside

2. Layers of cartons

3. Fragile Sign on top.

4. Can be customized.

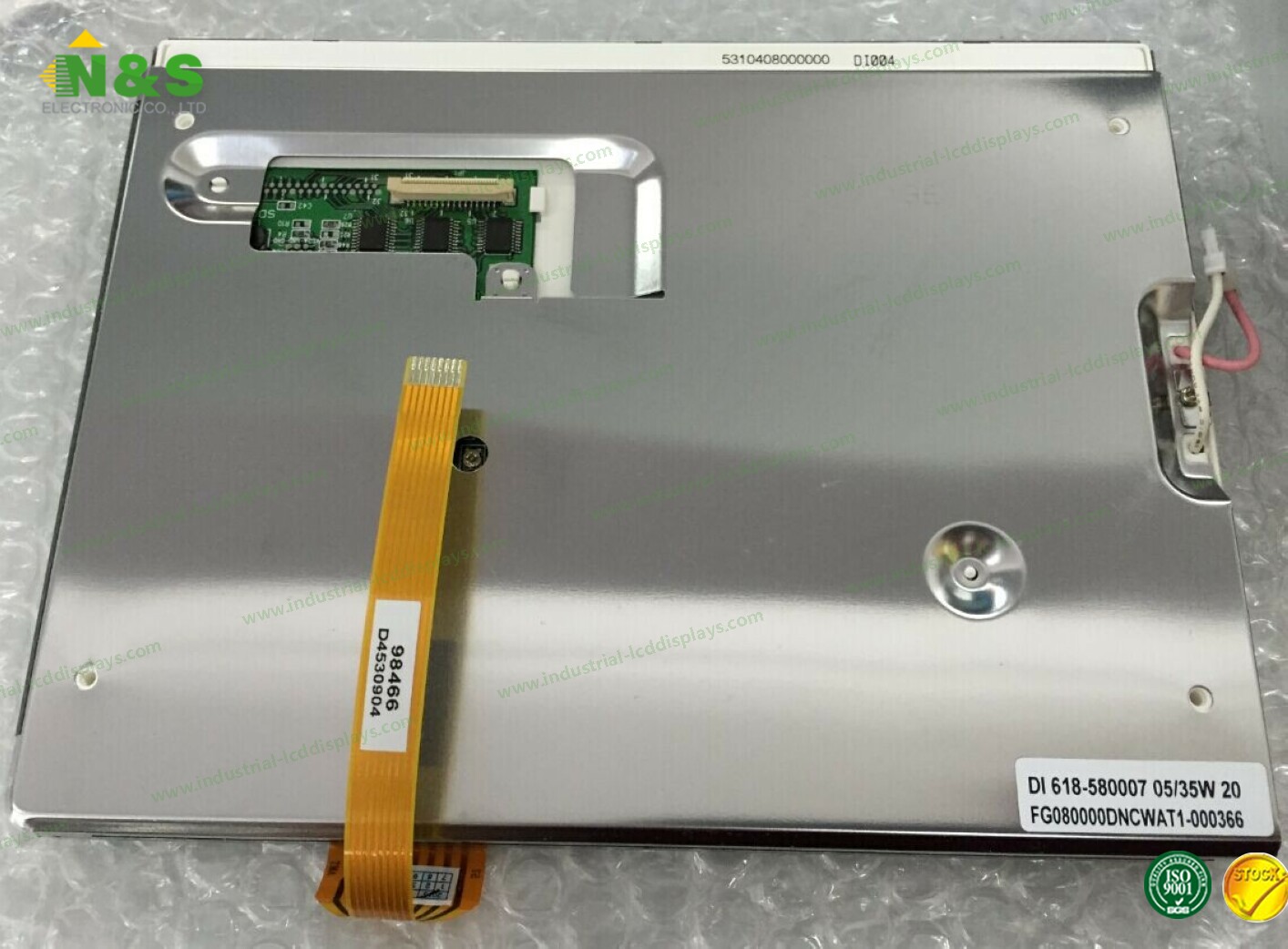

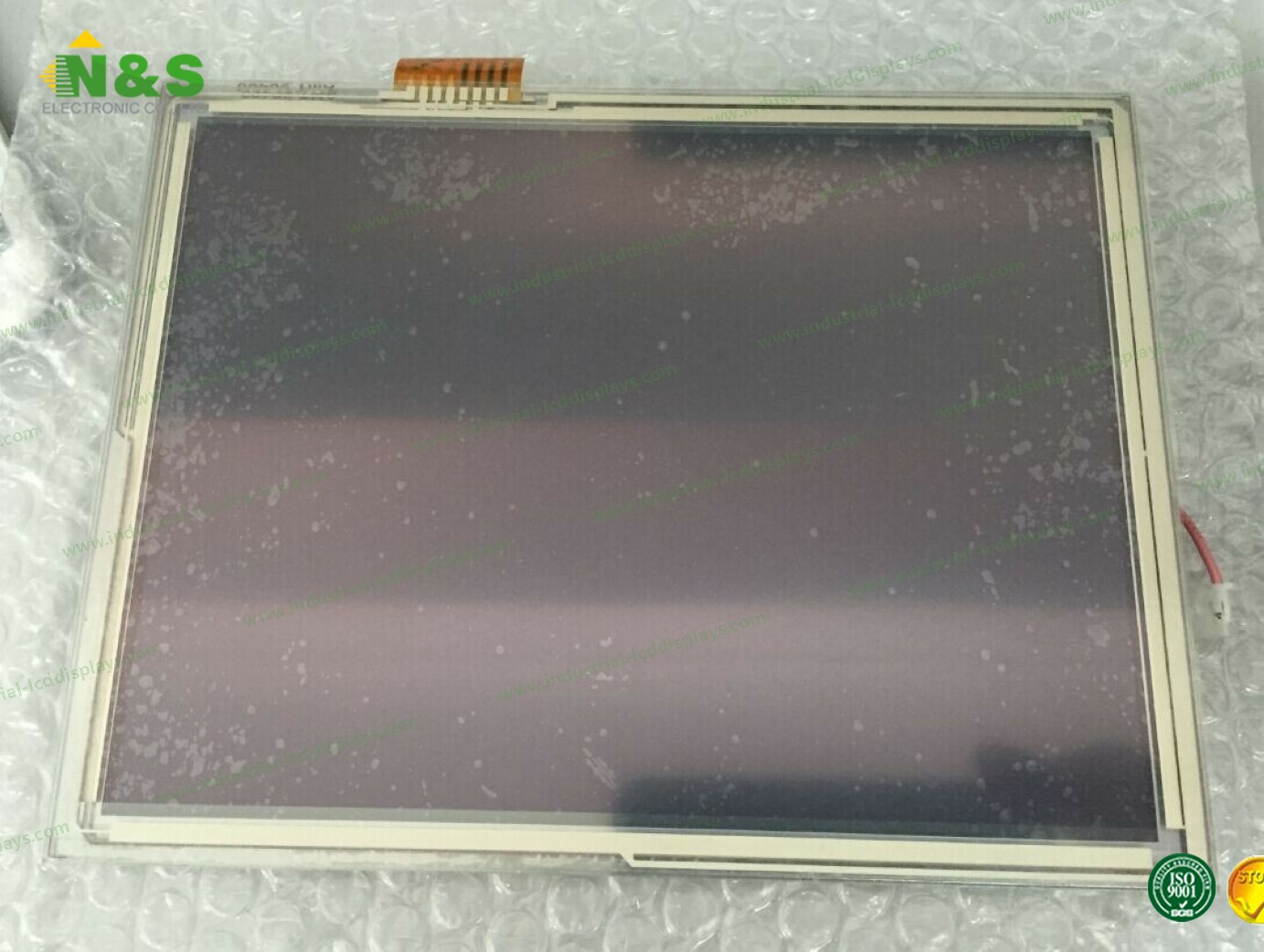

Details Pictures for Data Image FG080000DNCWAGT1

Data Image FG080000DNCWAGT1 Industrial LCD Displays 8.0 inch 162.24×121.68 mm
