Innolux 8.0 inch 162×121.5 mm Active Area electronic lcd display 183×141 mm Outline

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

Innolux 8.0 inch 162×121.5 mm Active Area electronic lcd display 183×141 mm Outline

  • 1
  • 2

Brand Name : Innolux LCD Panel

Model Number : AT080TN42 V.1

Certification : ISO9001

Place of Origin : Japan,Korea

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Surface : Antiglare

Brightness : 250 cd/m² (Typ.)

Contrast Ratio : 500:1 (Typ.)

Display Colors : 262K (6-bit)

Response Time : 10/15 (Typ.)(Tr/Td)

Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)

Panel Size : 8.0 inch

Panel Model : AT080TN42 V.1

Contact Now

Innolux 8.0 inch 162×121.5 mm Active Area electronic lcd display 183×141 mm Outline

What We Can Do for You
1. Quality ensurance
100% original new and A grade,
You can enjoy the real panels directly from original factory;
2. Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3. Delivery ensurance:
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4. After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.
We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation:
We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

INNOLUX AT080TN42 V.1 General Features

Panel Brand : INNOLUX
Panel Model : AT080TN42 V.1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 8.0 inch
Resolution : 800(RGB)×600 , SVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 162×121.5 mm
Outline : 183×141 mm
Surface : Antiglare
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 3S9P WLED
Signal Interface : Parallel RGB (1 ch, 6-bit) , 60 pins
Input Voltage : 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)


INNOLUX AT080TN42 V.1 Mechanical Features

Panel Size : 8.0 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 125 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0675×0.2025 mm (H×V)
Pixel Pitch : 0.2025×0.2025 mm (H×V)
Weight : 261g (Typ.)
Surface : Antiglare
Active Area : 162×121.5 mm (H×V)
Bezel Area : 165.20×124.70 mm (H×V)
Outline Dimension : 183×141 mm (H×V)
Outline Depth : 6.3±0.3 mm
Landscape or Portrait : Landscape type
Touch Panel : Without


INNOLUX AT080TN42 V.1 Backlight System
T080TN42 V.1 Backlight System
Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 3S9P
Lamp Shape : Array
Lamp Life Time : 20K(Min.) (Hours)
Lamp Voltage : 9.9±0.6V
Lamp Current : 180±18mA
Lamps Power Consumption : 1.782W (Typ.)
Interface Type : Connector


Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AE060RN01 Innolux 6.0" 800×600
F050A12-601 Innolux 5.0" 480×854
85C02502-Y21 Innolux 2.5" 320×240
V260B2-P03 Rev.C2 Innolux 26.0" 1366×768
G070YG1-P01 Innolux 7.0" 800×480
F03215-01Z Innolux 3.2" 360×480
F0352A-01U Innolux 3.5" 320×480
F07020-01D Innolux 7.0" 480×234
HB101NA-01C Innolux 10.1" 1280×800
BP059IA-01A Innolux 5.9" 720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

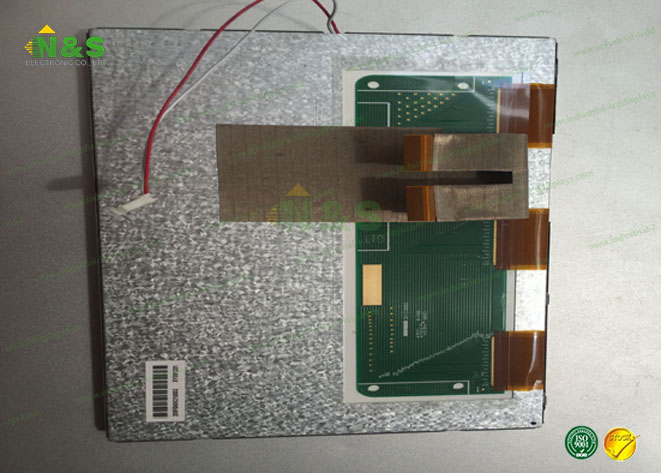

Details Pictures for Innolux LCD Panel AT080TN42 V.1

Innolux 8.0 inch 162×121.5 mm Active Area electronic lcd display 183×141 mm Outline

Innolux 8.0 inch 162×121.5 mm Active Area electronic lcd display 183×141 mm Outline
