CPT CLAA070MA0ACW 7.0 inch mini lcd display 500 / 1 Contrast Ratio

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

CPT CLAA070MA0ACW 7.0 inch mini lcd display 500 / 1 Contrast Ratio

  • 1
  • 2

Brand Name : CPT

Model Number : CLAA070MA0ACW

Certification : ISO9001

Place of Origin : Japan,Korea

MOQ : 1 piece

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 100 PCS PER DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Lamp Type : 3S6P WLED

Panel Brand : CPT

Panel Model : CLAA070MA0ACW

Panel Type : a-Si TFT-LCD , Panel

Panel Size : 7.0 inch

Active Area : 141.6×106.2 mm

Outline : 154×119.2×5.4 mm

Surface : Antiglare, Hard coating (3H)

Contact Now

CPT CLAA070MA0ACW 7.0 inch 141.6×106.2 mm Active Area 154×119.2×5.4 mm Outline 500:1 Contrast Ratio



CPT CLAA070MA0ACW General Features

Panel Brand : CPT
Panel Model : CLAA070MA0ACW
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 800(RGB)×600 , SVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 141.6×106.2 mm
Outline : 154×119.2×5.4 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K/16.2M (6-bit / 6-bit + FRC)
Response Time : 20 (Typ.)(Tr+Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 3S6P WLED Without Driver
Signal Interface : TTL (1 ch, 6/8-bit) , 60 pins
Input Voltage : 3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL)



CPT CLAA070MA0ACW Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.2M (6-bit / 6-bit + FRC)
Response Time : 20 (Typ.)(Tr+Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.33/1.43 (Typ./Max.)(9 points)



CPT CLAA070MA0ACW Backlight System

Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 3S6P
Lamp Shape : Array
Lamp Life Time : 10K(Min.) (Hours)
Lamp Voltage : 8.7/9.9/10.95V (Min./Typ./Max.)
Lamp Current : 120mA (Typ.)
Lamps Power Consumption : 1.188W (Typ.)
Interface Type : Connector



Packing & Delivery for our LCD Screen Panel Replacements

1. Anti-static Bag Packing.

2. Anti-Shock Bubble Bag Packing

3. Foam and Hard Carton Packing

4. Picked up by forward and delivered by express services.

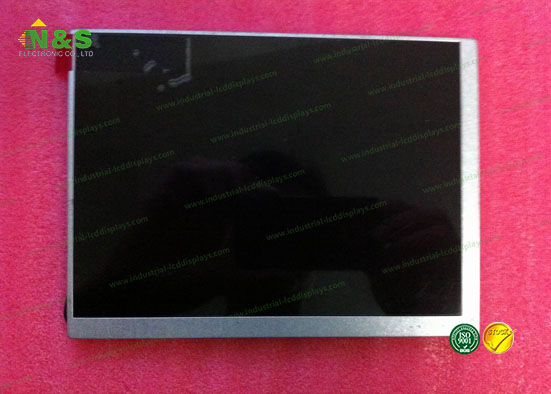

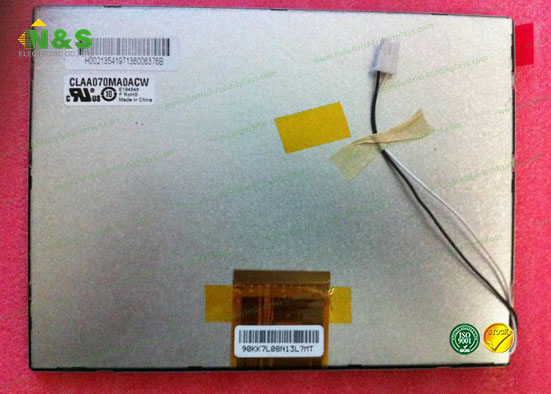

Details Pictures for CPT

CPT CLAA070MA0ACW 7.0 inch mini lcd display 500 / 1 Contrast Ratio



CPT CLAA070MA0ACW 7.0 inch mini lcd display 500 / 1 Contrast Ratio
