TPOTD035STED2 3.5 inch Industrial LCD Displays / tft lcd monitor 240 ×320

Brand Name : TPO

Model Number : TD035STED2

Certification : ISO9001

Place of Origin : Japan，Korea

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 100 PCS PER DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Brand : Industrial LCD Displays

Panel Model : TD035STED2

Display Colors : 262K (6-bit) , CIE1931 36%

Response Time : 35 (Typ.)

Panel Size : 3.5 inch

Display Mode : TN, Normally White, Transflective

Active Area : 53.28×71.04 mm

Outline : 64.35×87.1×4.8 mm

Contact Now

TPOTD035STED2 3.5 inch Industrial LCD Displays / tft lcd monitor 240 ×320

TPO TD035STED2 General Features

Panel Brand :	TPO
Panel Model :	TD035STED2
Panel Type :	LTPS TFT-LCD , Panel
Panel Size :	3.5 inch
Resolution :	240(RGB)×320 , QVGA
Display Mode :	TN, Normally White, Transflective
Active Area :	53.28×71.04 mm
Outline :	64.35×87.1×4.8 mm
Surface :
Brightness :	115 cd/m² (Typ.)
Contrast Ratio :	100:1 (Typ.)
Display Colors :	262K (6-bit) , CIE1931 36%
Response Time :	35 (Typ.)
Viewing Angle :	60/60/50/60 (Typ.)
Frequency :	60Hz
Lamp Type :	4S1P WLED
Signal Interface :	Parallel RGB (1 ch, 6-bit) + SPI , 61 pins
Input Voltage :	2.8/5.0/10/-5.5V (Typ.)

TPO TD035STED2 Optical Features

Display Mode : TN, Normally White, Transflective
Brightness : 115 cd/m² (Typ.)
Contrast Ratio : 100 : 1 (Typ.)
Contrast Ratio : 15:1 (Typ.)
Display Color : 262K (6-bit)
Color Gamut : 36% NTSC (CIE1931)
Response Time : 35 (Typ.)
Viewing Angle : 60/60/50/60 (Typ.)(
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.25/1.43 (Typ./Max.)
Reflectance Ratio : 7/10% (Min./Typ.)
Sunlight Readable : Sunlight Readable

TPO TD035STED2 Backlight System

Panel Brand :	TPO
Panel Model :	TD035STED2
Panel Type :	LTPS TFT-LCD , Panel
Panel Size :	3.5 inch
Resolution :	240(RGB)×320 , QVGA
Display Mode :	TN, Normally White, Transflective
Active Area :	53.28×71.04 mm
Outline :	64.35×87.1×4.8 mm
Surface :
Brightness :	115 cd/m² (Typ.)
Contrast Ratio :	100:1 (Typ.)
Display Colors :	262K (6-bit) , CIE1931 36%
Response Time :	35 (Typ.)
Viewing Angle :	60/60/50/60 (Typ.)
Frequency :	60Hz
Lamp Type :	4S1P WLED
Signal Interface :	Parallel RGB (1 ch, 6-bit) + SPI , 61 pins
Input Voltage :	2.8/5.0/10/-5.5V (Typ.)

TPO TD035STED2 Specification Source

Language : English
Version : Ver0.1
Issue Date : 2005 - 4 - 13
Panelook Updated : 2015-07-13 08:47
Disclaimer : The above parameters are inputted by electronic engineers according to the datasheet, every effort has been made to reduce errors, but we can not guarantee that the parameter is entirely correct.

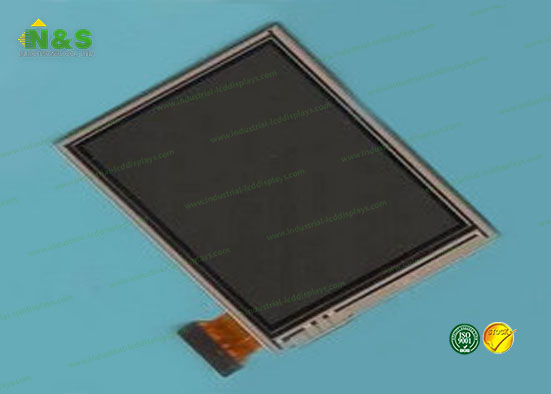

Details Pictures for TD035STED2 TPOTD035STED2 3.5 inch Industrial LCD Displays / tft lcd monitor 240 ×320

TPOTD035STED2 3.5 inch Industrial LCD Displays / tft lcd monitor 240 ×320
