8.0 Inch Innolux LCD Panel 162×121.5 mm Active Area 262K Display Colors

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

8.0 Inch Innolux LCD Panel 162×121.5 mm Active Area 262K Display Colors

  • 1
  • 2

Brand Name : Innolux LCD Panel

Model Number : AT080TN42 V.1

Certification : ISO9001

Place of Origin : Japan，Korea

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Brand : INNOLUX

Panel Model : AT080TN42 V.1

Panel Type : a-Si TFT-LCD , Panel

Panel Size : 8.0 inch

Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)

Lamp Type : 3S9P WLED

Signal Interface : Parallel RGB (1 ch, 6-bit) , 60 pins

Input Voltage : 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)

Contact Now

8.0 Inch Innolux LCD Panel 162×121.5 mm Active Area 262K Display Colors



INNOLUX AT080TN42 V.1 General Features

Panel Brand : INNOLUX
Panel Model : AT080TN42 V.1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 8.0 inch
Resolution : 800(RGB)×600 , SVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 162×121.5 mm
Outline : 183×141 mm
Surface : Antiglare
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 3S9P WLED Without Driver
Signal Interface : Parallel RGB (1 ch, 6-bit) , 60 pins
Input Voltage : 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)



INNOLUX AT080TN42 V.1 Mechanical Features

Panel Size : 8.0 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 125 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0675×0.2025 mm (H×V)
Pixel Pitch : 0.2025×0.2025 mm (H×V)
Weight : 261g (Typ.)
Surface : Antiglare
Active Area : 162×121.5 mm (H×V)
Bezel Area : 165.20×124.70 mm (H×V)
Outline Dimension : 183×141 mm (H×V)
Outline Depth : 6.3±0.3 mm
Landscape or Portrait : Landscape type
Touch Panel : Without





What Is Our Advantages

1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. As a result, our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.



Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Plastic Trays Inside

            2. Layers of cartons

            3. Fragile Sign on top.

            4. Can be customized.

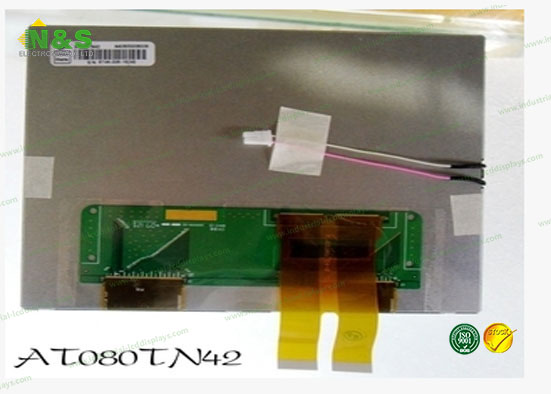

Details Pictures for Innolux LCD Panel



8.0 Inch Innolux LCD Panel 162×121.5 mm Active Area 262K Display Colors
