Industrial 102PPI 21.5" AUO LCD Panel 1920×1080 G215HAN01.0
G215HAN01.0 AUO 21.5" LCM 1920×1080 Without Touchscreen And Industrial,Medical Imaging
AUO G215HAN01.0 Mechanical Details
| Pixel Features : | Pixel Format 1920(RGB)×1080, FHD Dot Pitch 0.08265×0.24795 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.24795×0.24795 mm (H×V) [102PPI] |
| Mechanical Size : | Display Area 476.064×267.786 mm (H×V) Bezel Area 479.8×271.3 mm (H×V) Outline Dim. 497.6×292.2 mm (H×V) Outline Depth 17.7±0.5 mm |
| Outline Features : | Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 16:9 (H:V) Shape Style |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight 2.10Kgs (Typ.) Surface Antiglare, Hard coating (3H) |
- Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
Back to Top
AUO G215HAN01.0 Optical Details
| Basic Information : | Brightness 400 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Optical Mode AHVA, Normally Black, Transmissive Viewing Direction Symmetry Response Time 12/10 (Typ.)(Tr/Td) ms |
| Color Performance : | Chromaticity Wx:0.313; Wy:0.329 Color Numbers 16.7M (8-bit) Color Temperature 6485K Uniformity 1.18/1.25 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio 73% sRGB 96% coverage Adobe RGB 75% coverage DCI-P3 76% coverage Rec.2020 55% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
- Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size |
| X139BLB01.0 | AUO | 1.39" |
| H381DLN01.0 | AUO | 3.8" |
| H466TAN02.3 | AUO | 4.7" |
| H446TAN03.1 | AUO | 4.5" |
| H446TAN03.0 | AUO | 4.5" |
| H546AAN01.0 | AUO | 5.5" |
| B070ATN01.0 CELL | AUO | 7.0" |
| A070SN02 V0 CELL | AUO | 7.0" |
| A050VVN01.2 | AUO | 5.0" |
| M320QAN01.1 CELL | AUO | 32.0" |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A: Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

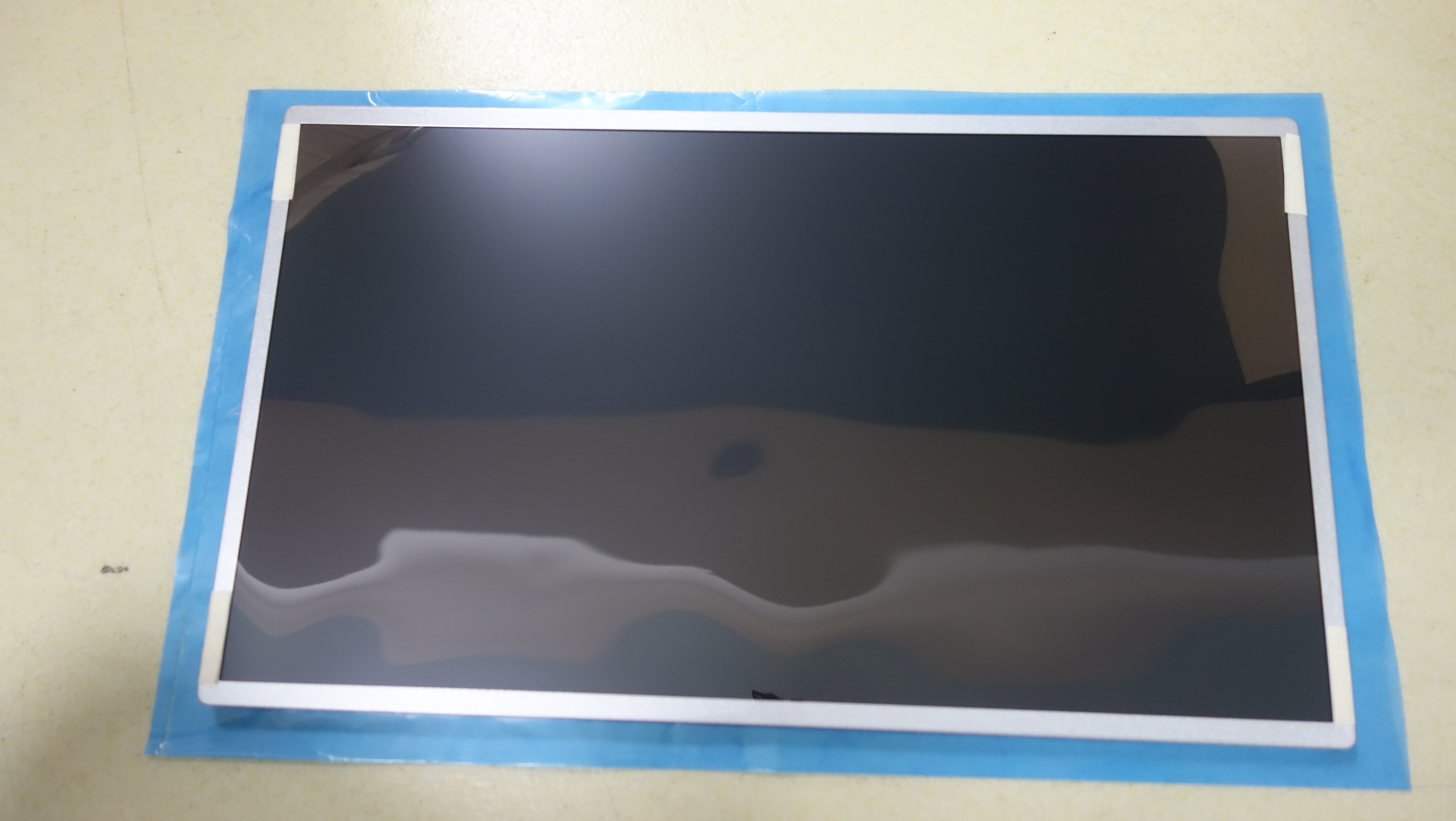

Industrial 102PPI 21.5" AUO LCD Panel 1920×1080 G215HAN01.0 Images
|
