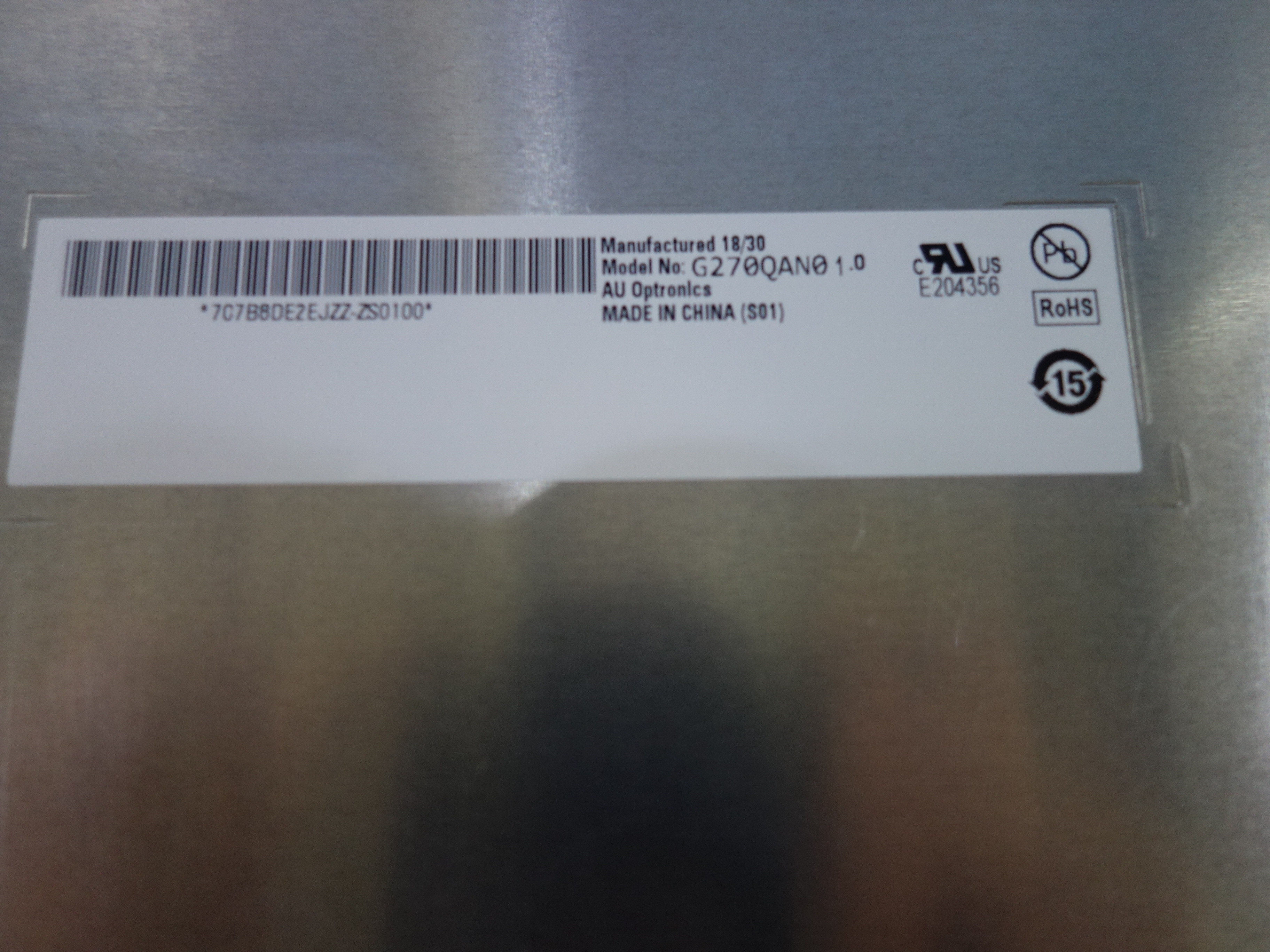

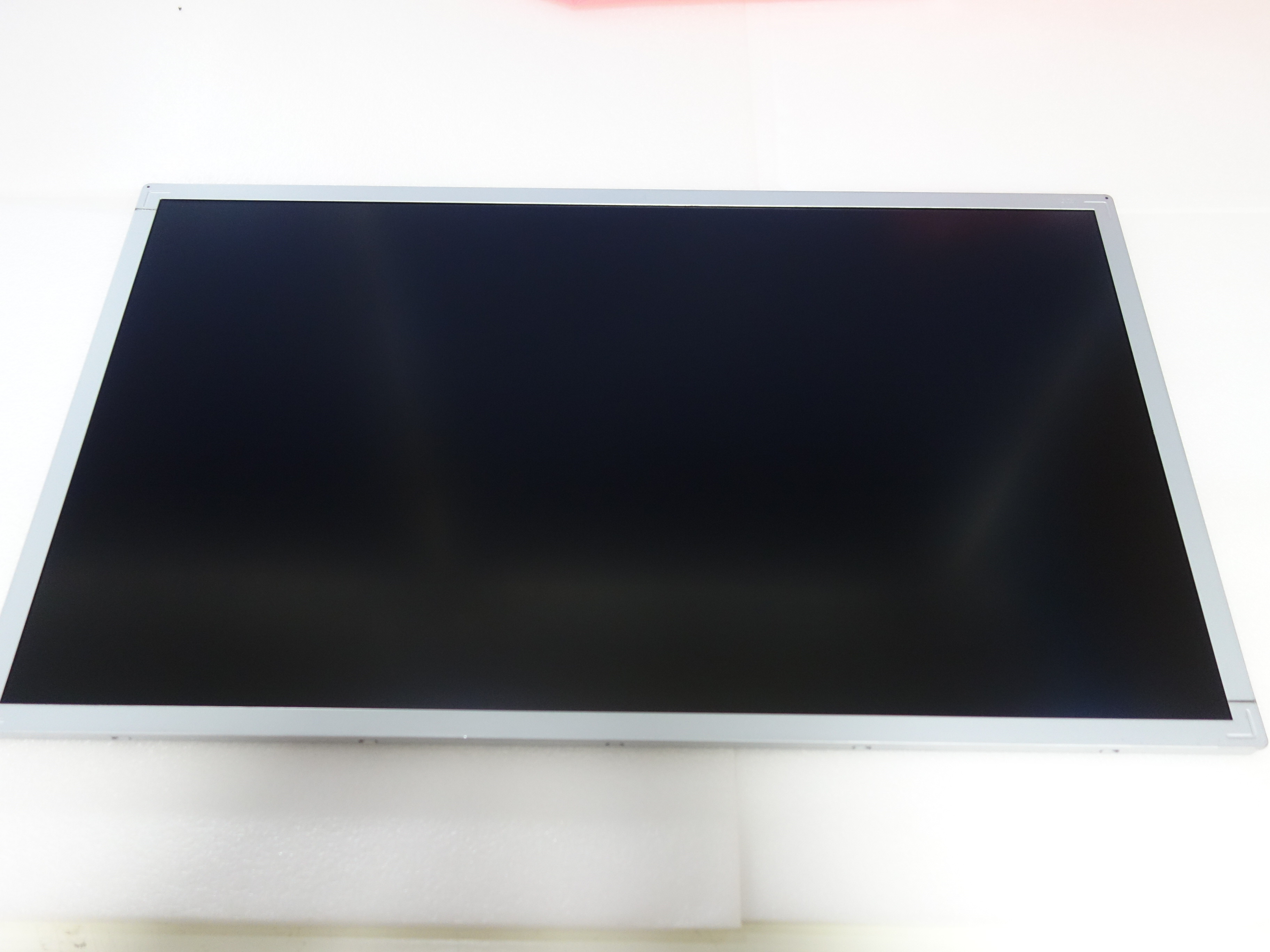

G270QAN02.0 AUO 27" LCM 2560×1440 Without Touchscreen And Industrial
AUO G270QAN02.0 Optical Details
| Basic Detail : | Luminance 350 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 8/8 (Typ.)(Tr/Td) ms Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit) Color Temperature 6485K White Variation 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio 76% sRGB 100% coverage Adobe RGB 78% coverage DCI-P3 79% coverage Rec.2020 57% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
- Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
Back to Top
AUO G270QAN02.0 Mechanical Details
| Pixel Features : | Number of Pixel 2560(RGB)×1440, Quad-HD Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.0777×0.2331 mm Pixel Pitch(W×H) 0.2331×0.2331 mm [108PPI] |
| Physical Size : | Active Viewing 596.74(W)×335.66(H) mm Overall Dim. 606.44(W)×355.56(H) mm Bezel Opening - Overall Depth 10.33/15.03 (Typ./Max.) mm |
| Outline Features : | Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 16:9 Shape Style 3-side borderless |
| Fixation : | Rear mounting Pole (14-M3) |
| Other Detail : | Mass 3.50Kgs (Typ.) Surface Antiglare, Hard coating (3H) |
- Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| Panel Model | Brand | Size |
| X139BLB01.0 | AUO | 1.39" |
| H381DLN01.0 | AUO | 3.8" |
| H497TLB01.4 | AUO | 5.0" |
| H163QLN01.0 | AUO | 1.63" |
| H139BLN01.2 | AUO | 1.39" |
| T320XVN02.F CELL | AUO | 31.5" |
| T430HVN01.6 CELL | AUO | 43" |
| B101EAN01.2 CELL | AUO | 10.1" |
| H497EAN01.0 | AUO | 5.0" |
| T320XVN02.C CELL | AUO | 31.5" |
| T320HVN05.8 CELL | AUO | 31.5" |
| T500HVN07.5 CELL | AUO | 50" |
| B070EAN02.0 CELL | AUO | 7.0" |
| M320QAN01.0 CELL | AUO | 32.0" |
| H546TAN02.0 | AUO | 5.5" |
| H598TAN01.0 | AUO | 6.0" |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
4. Carton Box.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Product Tags:
|
|
G270QAN02.0 AUO LCM Lcd Panel 27 Inch 2560×1440 3 Side Borderless Images
|
