G156HAN04.0 15.6" 1920×1080 AUO Industrial TFT Panel Antiglare
Description Of AUO LCD Panel
AU Optronics Corp. (hereafter called AUO) G156HAN04.0 is a 15.6 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Based on datasheet with version of Ver0.1 which was released out on 2 20 2020, G156HAN04.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.
AUO G156HAN04.0 Mechanical Features
| Panel Size : | 15.6 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.05975×0.17925 mm | 0.17925×0.17925 mm [141PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 344.16×193.59 mm | - | 363.8×215.9 mm | 10.32±0.5 mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Panel Cover | Weight | Surface |
| - | 880/975W (Typ./Max.) | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 1000 cd/m² (Typ.) | AHVA, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 25 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points)  |
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| H598QAN01.0 | AUO | 6.0" |
| T430HVN01.2 CELL | AUO | 43" |
| H495TAN01.2 | AUO | 5.0" |
| T650QVN04.5 CELL | AUO | 65" |
| M320DVN01.0 CELL | AUO | 32.0" |
| M238HVN01.0 CELL | AUO | 23.8" |
| M238HVN01.2 CELL | AUO | 23.8" |
| T320XVN02.F CELL | AUO | 31.5" |
| T430HVN01.6 CELL | AUO | 43" |
| B101EAN01.2 CELL | AUO | 10.1" |
| H497EAN01.0 | AUO | 5.0" |
| T320XVN02.C CELL | AUO | 31.5" |
| T320HVN05.8 CELL | AUO | 31.5" |
Application Of AUO LCD Panel G156HAN04.0
1. Military Display
2. Medical Display
3. Intelligent Display
4. Industrial Display
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
Product Tags:
|
|

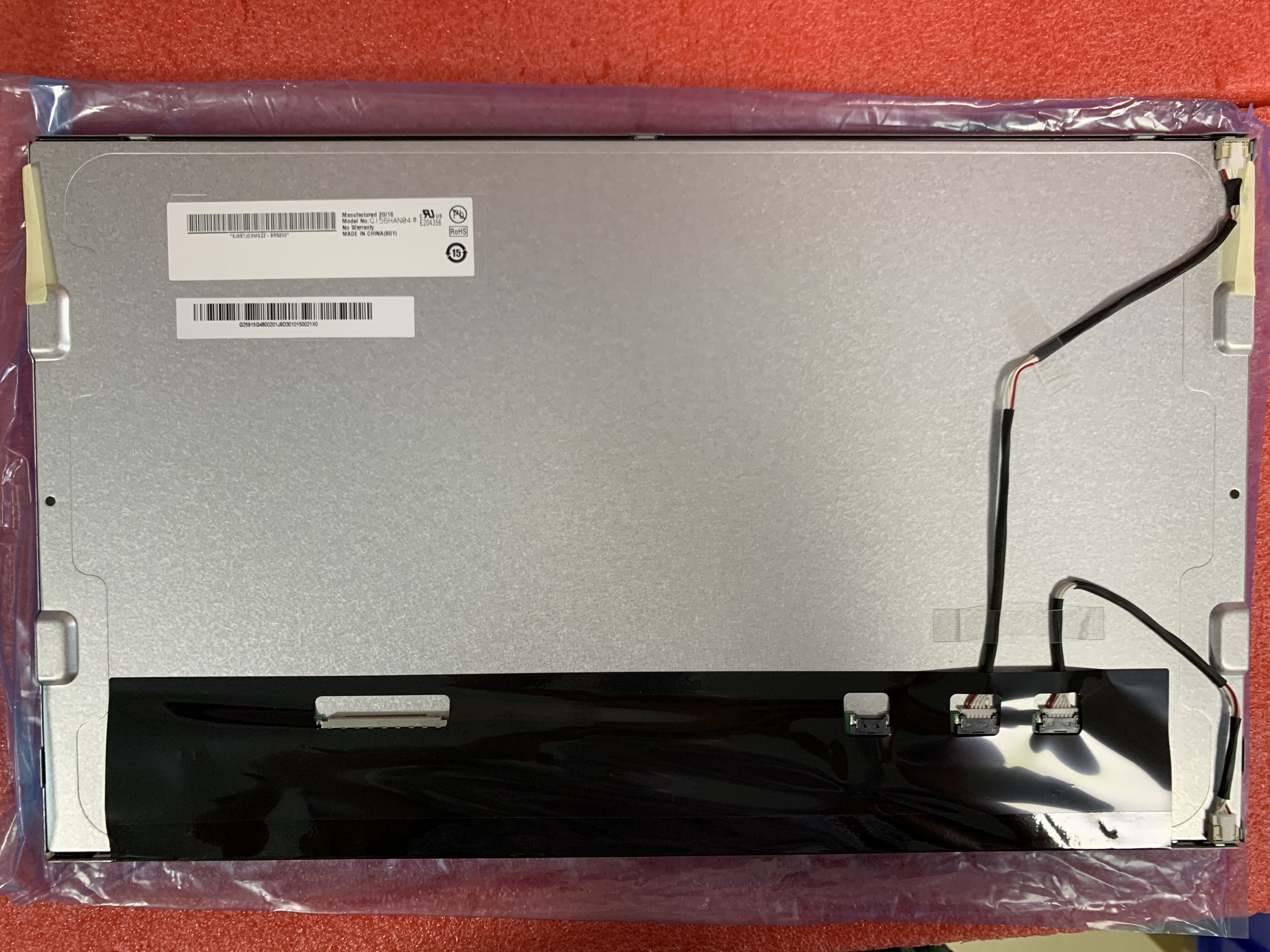

G156HAN04.0 15.6" 1920×1080 AUO Industrial TFT Panel Antiglare Images
|
