0.294mm G190ETN03.0 19 Inch 1280×1024 AUO LCM LCD Display Panel
Description Of AUO LCD Panel
Now have 1 datasheets of G190ETN03.0 released by AU Optronics Corp. (hereafter called AUO). According to datasheet with version of Ver1.0 which was released out on 11 10 2011, G190ETN03.0 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.
AUO G190ETN03.0 Optical Details
Basic Information :
Luminance
350 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
3.6/1.4 (Typ.)(Tr/Td) ms
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Variation
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
93% coverage
Adobe RGB
72% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
AUO G190ETN03.0 Mechanical Details
Pixel Features :
Number of Pixel
1280(RGB)×1024, SXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.098×0.294 mm
Pixel Pitch(W×H)
0.294×0.294 mm [86PPI]
Physical Size :
Active Viewing
376.32(W)×301.056(H) mm
Overall Dim.
396(W)×324(H) mm
Bezel Opening
380.0(W)×305.08(H) mm
Overall Depth
11.7 (Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
5:4
Shape Style
Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
1.80Kgs (Typ.)
Surface
Antiglare, Hard coating (3H)
Below are our other LCD panels stock for your easy reference:
| H497DAN01.1 | AUO | 5.0" |
| H650DAN01.0 | AUO | 6.4" |
| H572DAN01.0 | AUO | 5.7" |
| H546DAN01.2 | AUO | 5.5" |
| H499TAN03.0 | AUO | 5.0" |
| H572TAN01.0 | AUO | 5.7" |
| H466TAN02.3 | AUO | 4.7" |
| H446TAN03.1 | AUO | 4.5" |
| H446TAN03.0 | AUO | 4.5" |
| H546AAN01.0 | AUO | 5.5" |
| B070ATN01.0 CELL | AUO | 7.0" |
| A070SN02 V0 CELL | AUO | 7.0" |
| A050VVN01.2 | AUO | 5.0" |
| M320QAN01.1 CELL | AUO | 32.0" |
| M270HVN02.0 CELL | AUO | 27.0" |
| M270HTN01.1 CELL | AUO | 27.0" |
| B116XAN03.0 CELL | AUO | 11.6" |
Application Of AUO LCD Panel G190ETN03.0
1. Military Display
2. Medical Display
3. Industrial Display
4. Intelligent Display
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Quality Control:
1.Visual Inspection
Make sure No damage, No Scratches, No dusty, No light leakage.
2.Function Inspection
Make sure all functions are 100% tested ok
Product Tags:
|
|

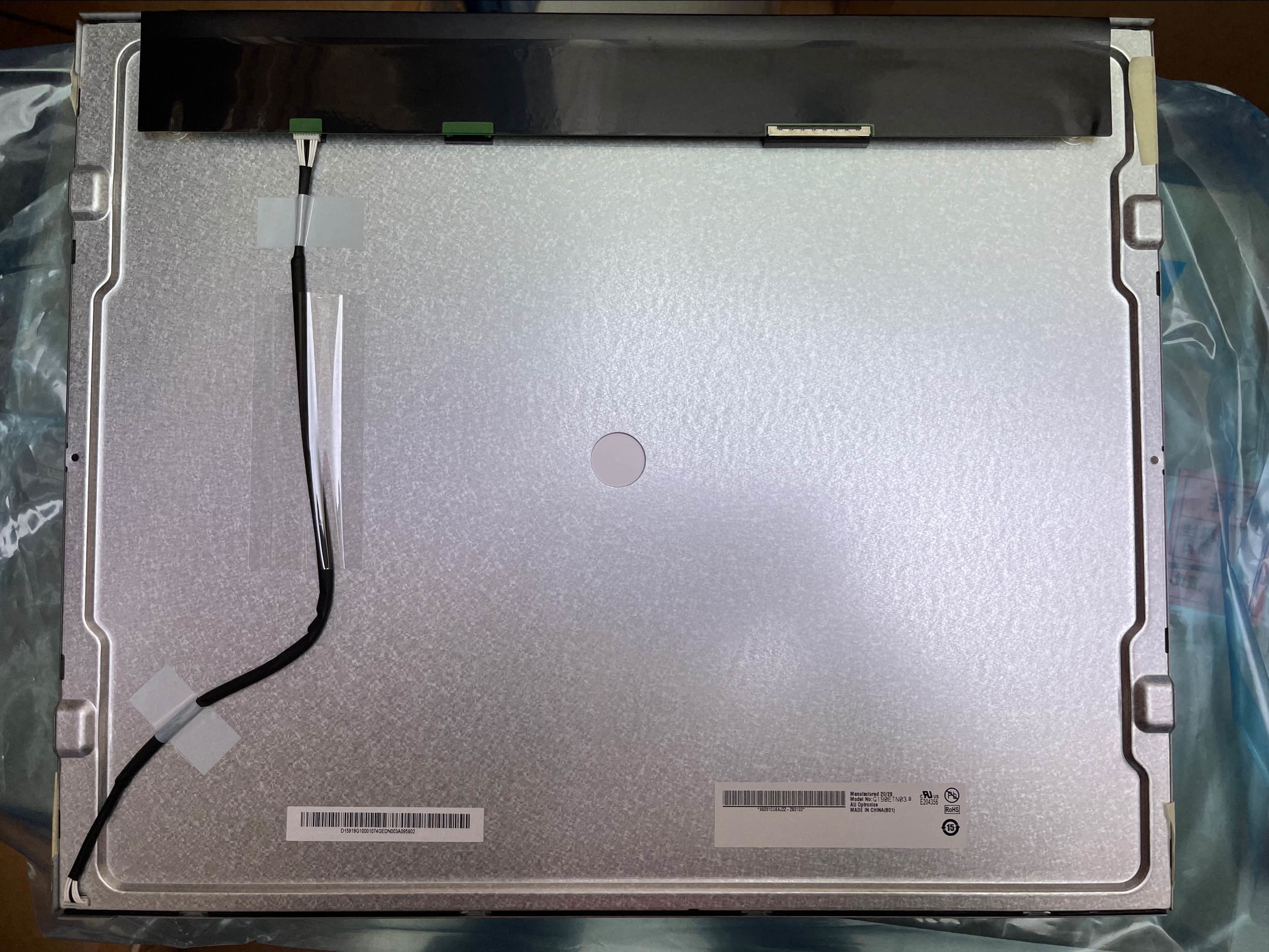

0.294mm G190ETN03.0 19 Inch 1280×1024 AUO LCM LCD Display Panel Images
|
